Description

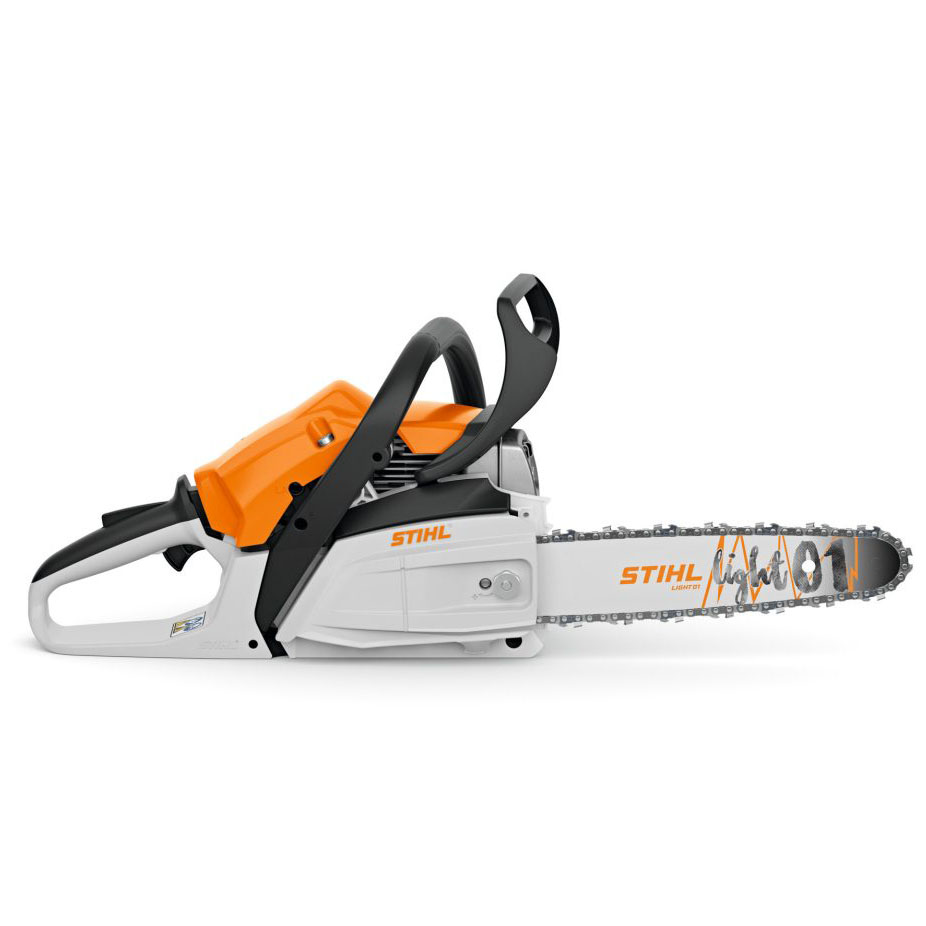

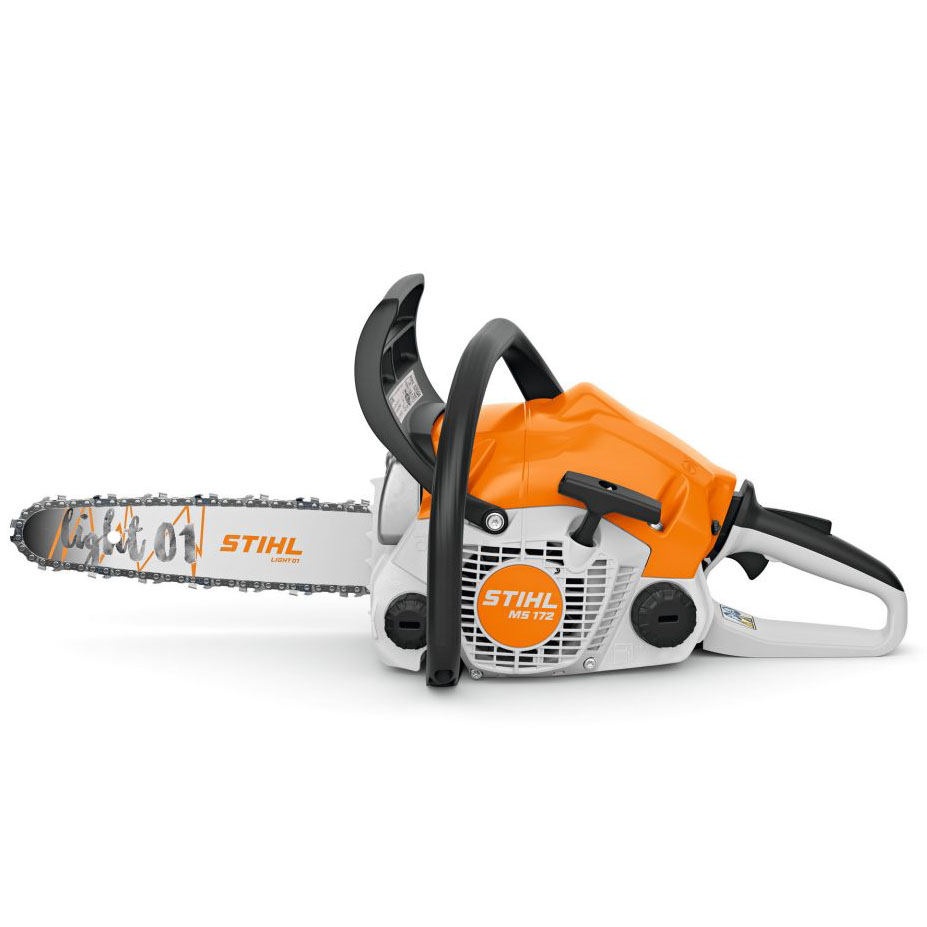

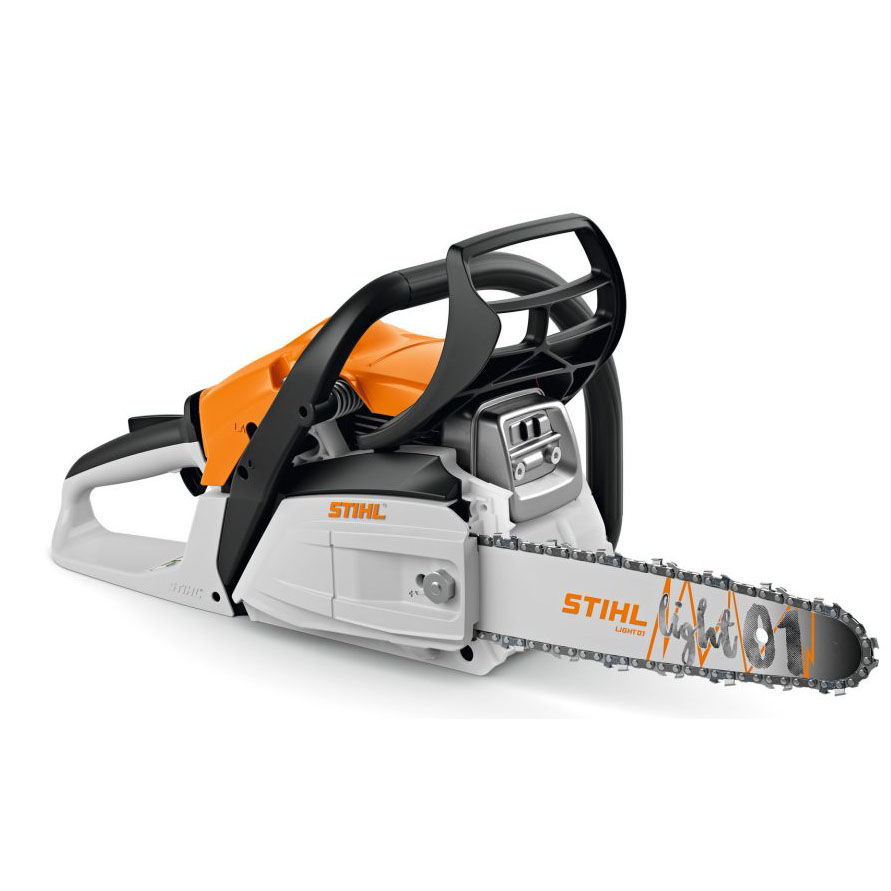

MS 172 petrol chainsaw : Compact and versatile in use
When it comes to cutting firewood or grounds maintenance, the compact STIHL MS 172 petrol chainsaw offers you a flexible petrol chainsaw, whether you are a domestic user or a professional in horticulture and landscaping or a tradesperson. You can even fell small trees with the MS 172.
The STIHL MS 172 petrol chainsaw impresses with its powerful STIHL 2-MIX engine, which is known for excellent cutting performance coupled with low fuel consumption. The standard STIHL 3/8” P saw chain ensures precise cuts with its narrow kerf. Thanks to the STIHL anti-vibration system, you can work with the STIHL MS 172 chainsaw while protecting your muscles and joints. This means that your chainsaw runs smoothly and evenly.
The single-lever control is very convenient, enabling you to perform all functions with just one hand. If you take a break, the chainsaw is ready to use again immediately. The combi-lever with stop function automatically springs back into the operating position. Another advantage of using the MS 172 from STIHL: Side-mounted chain tensioning ensures safe and easy chain retensioning without any contact with the sharp chain or the tips of the claw stop.
The STIHL MS 172 also has a diagnostic socket for maintaining your petrol chainsaw. This will provide your local STIHL dealer with information about the machine design, service life and repair and maintenance instructions.
Technical details
Displacement 31.8 cm³
Power 1.50 kW
Device weight without refuelling 4.5 kg 1)
System weight without refuelling 4.97 / 5.05 kg 2)
Power-to-weight ratio 3 kg/kW
Bar length 30 / 35 3)
Groove width 1.10 mm
Saw chain pitch 3/8″P
Device length with bumper spike 410 mm 1)
Sound pressure level 100 dB(A) 4)
Sound power level 110 dB(A) 4)
Vibration level left 3 m/s² 5)
Vibration level right 3.4 m/s² 5)
Features:
Side mounted Chain Tensioning:
For simple and secure re-tensioning. Side-mounted chain tensioning allows for protected, easy and quick chain tensioning and replacement. The tensioning screw is inserted laterally through the sprocket cover.
Compensator:
Reduce maintenance. The compensator is a control system in the carburettor, which uses pressure compensation to ensure that engine performance, exhaust gas quality and fuel consumption remain virtually constant over a long period of time, despite increasing contamination of the air filter. You do not need to clean the air filter until there is a noticeable drop in performance. This means that you can work for a long time without maintenance.
Stihl Four Channel Technology:
For lower fuel consumption and higher performance. Thanks to STIHL four-channel technology, you can work with your power tool with very low fuel consumption and high performance. The four overflow channels guide the fuel-and-air mixture into the cylinder in a targeted and more compressed manner, which optimally burns the fuel and significantly increases the performance of the engine.
Stihl 2-Mix Engine:
High power and efficient. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.
